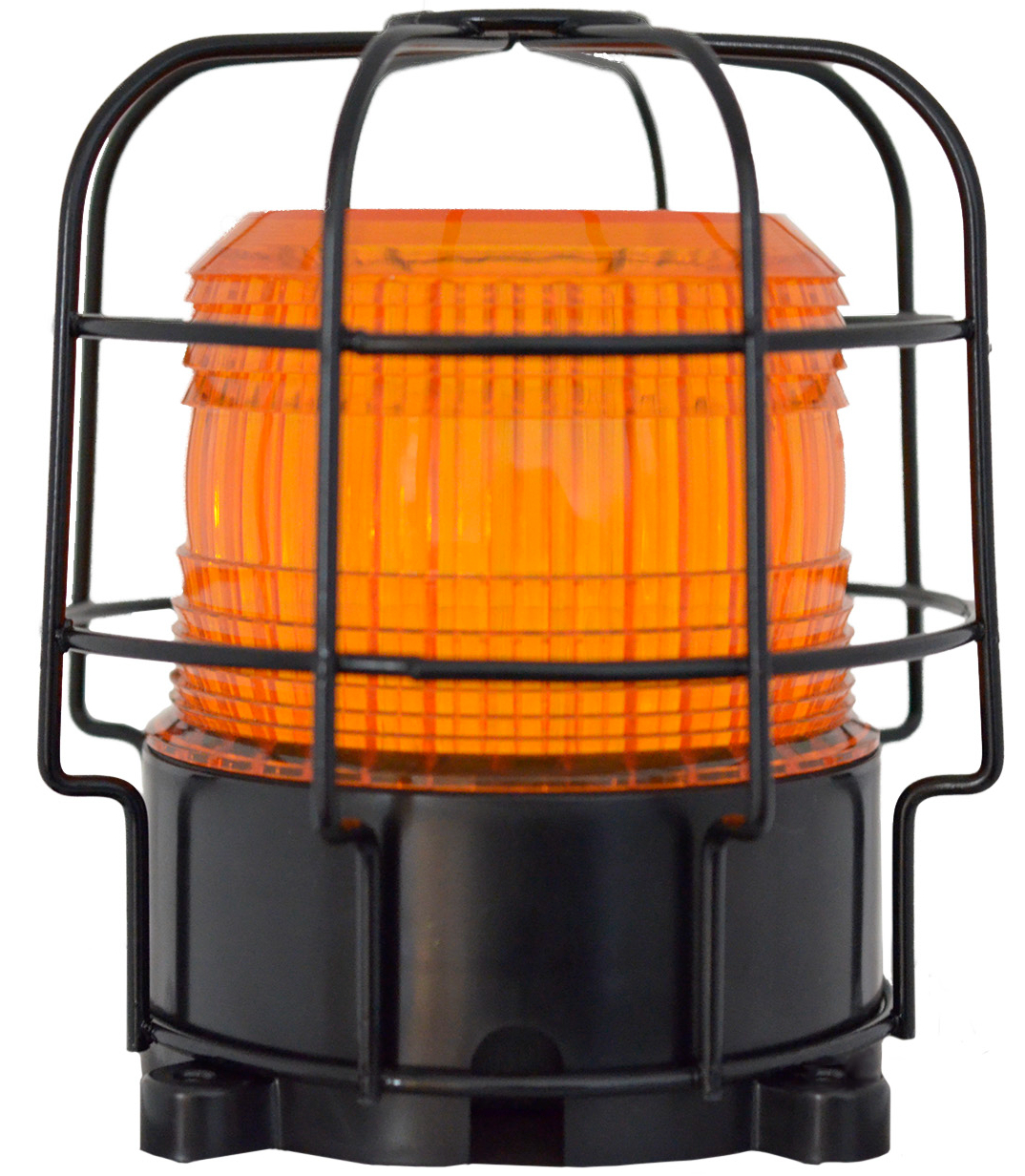

OmniBeacon
The OmniBeacon looks, feels, and installs like your typical alarm light. Simply attach it to the alarm output of any device and when the output is triggered the light turns on and the siren sounds. Only, the OmniBeacon does not stop there, it’s connected with the local cellular network and OmniSite’s cloud servers to give operators real-time alert notifications via text, email, and voice. OmniSite improved the traditional alarm light by adding Cellular Telemetry to the circuit. OmniBeacon is applicable everywhere you would want an alarm light and need a reliable monitoring solution that includes data logging and web-based access, via the Included GuardDog web interface which is available through PC, tablet, or phone app.
Check the Verizon Coverage in your Area
$330 Unit Offer
An offer you can't refuse.
New Customer?
or on the fence?
Try a unit!
Cellular subscription required & the unit is yours to keep.
View our case study with Carmel Utilities demonstrating the benefits of the OmniBeacon
Product Features
Web-Based Interface for Data Logging and Reporting
GuardDog comes with the purchase of wireless service. A platform where you can view ALL of your stations on one dashboard.
Rechargeable Backup Battery
The OmniBeacon will automatically charge the battery using a high-quality temperature compensated battery charger. Will continue to monitor up to 12 hours after primary power loss.
Notifies of Power Loss
Get immediately notified of a power loss via test, email, or phone call.
NEMA 4X Rating for Mounting Indoors or Outdoors
Corrosion resistant and built to withstand harsh weather conditions.
Bright LEDs and 85dB Annunciator
In addition to a light upon an alarm state, you will get an audible alarm.
Dual Input Alarm Channels
(1) 12VAC/VDC to 120VAC/VDC, opto-isolation. (1) Dry contact input.
Applications
Technical Specs
| Dual Input Alarm Channels | (1) 12VAC/VDC – 120 VAC/VDC, opto-isolated to 1500VAC input and (1) Dry Contact Input |
| Alarm Light Bulb | Super bright LEDs, long-life |
| Alarm Light State | Pulses LEDs at 3Hz, selectable for Inputs #1 and #2 |
| Cellular Radio | 4G LTE CAT-1 |
| Certifications | FCC Parts 15, 22, 24; RoHS compliant; IC: RSS-132 & 133 |
| Antenna | Integrated, on board |
| Input Power | 120VAC +/-20% @ 0.5A max; 12VDC Version: 12VDC +/-15% @ 1.5A max |
| Alarm Light Annunciator | 2.8kHz, 85dB, selectable for Inputs #1 and #2, pulses at 3Hz |
| Backup Battery | External 6VDC Sealed Lead Acid, 1.3AH, Re-chargeable, .187″ Faston spades |
| Operating Temp. | -20/150 Deg F |
| Operating Humidity | 0-90% RH, non-condensing |
| Dimensions | 5″W round base x 5″H |
| Weight | 1 lb |
| Enclosure | NEMA 4x equivalent rating for direct mounting indoors or outdoors |
| Protections | US Patent #7,228,129 and #7,778,633 |
Frequently asked questions
Here are some common questions about OmniBeacon.
OmniBeacon is an advanced alarm light that adds cellular telemetry and real-time remote monitoring to standard alert systems. It sends instant text, email, and voice notifications via OmniSite’s cloud servers.
OmniBeacon attaches to the alarm output of any device and activates a bright LED and 85dB siren when triggered. Its 4G LTE CAT-1 connectivity ensures every event is instantly logged and notified.

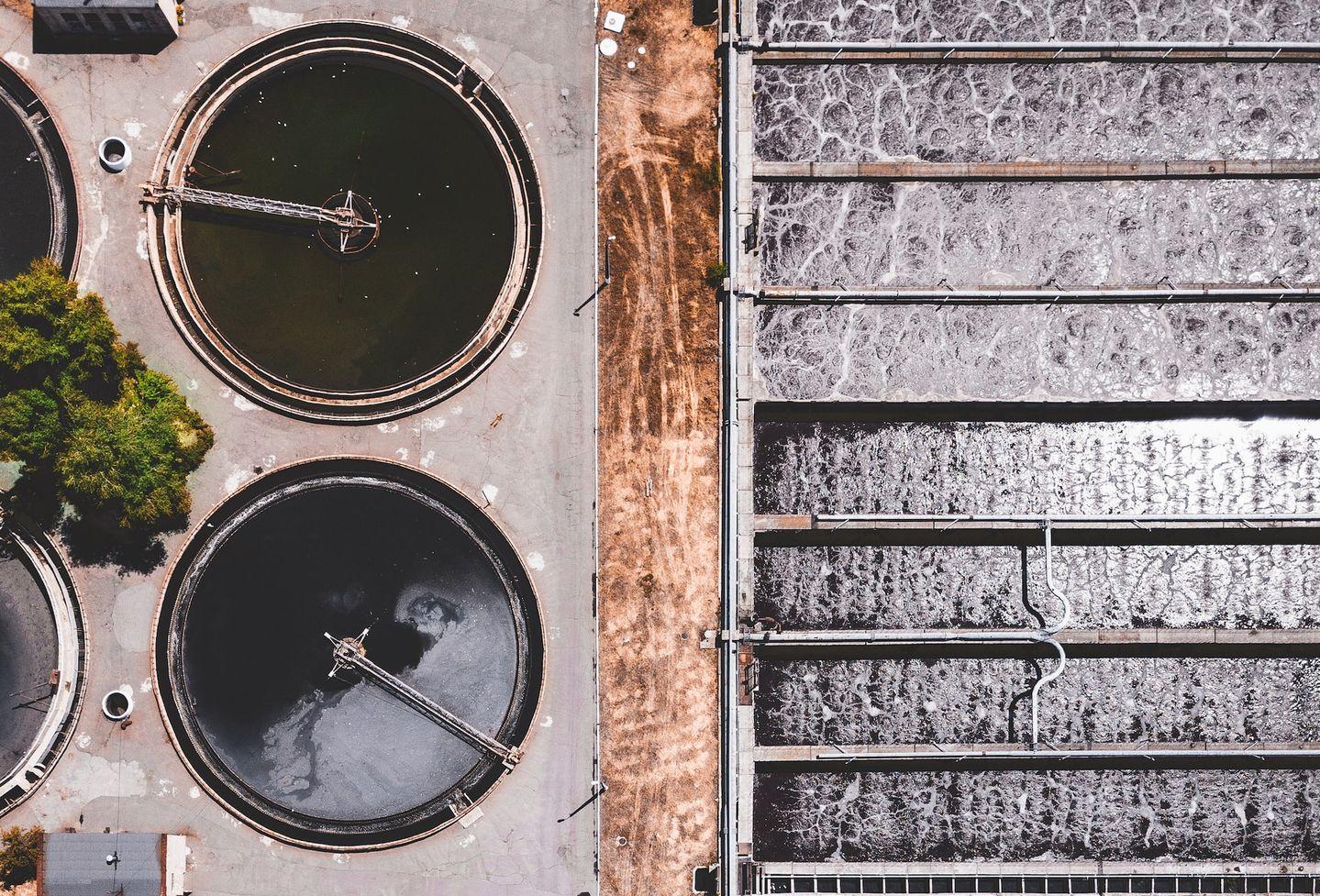

Ideal for wastewater, water treatment, and airfield runway lighting, OmniBeacon’s NEMA 4x-rated enclosure works indoors or outdoors. It’s perfect for any setting needing reliable alarm notifications and remote monitoring.
It features dual input channels, a rechargeable battery backup, and a web-based data logging system. OmniBeacon’s advanced cellular telemetry and bright LED alerts make it a robust alarm system.
Yes, a cellular subscription is required for full remote monitoring and real-time notifications. Once subscribed, OmniBeacon connects seamlessly to the GuardDog web interface via OmniSite’s cloud.
OmniBeacon: Smart Cellular Alarm and Alert System
Protecting our communities and natural waterways starts with reliable equipment. When water and wastewater systems fail, you need to know immediately. OmniSite developed the OmniBeacon to give operators a clear early warning when equipment malfunctions. We believe in safeguarding our environment, and providing dependable alerts is the first step in taking fast action to protect our drinking water and streams. Our mission centers on providing robust monitoring solutions to municipal sewage and water pumping stations across the USA.
The OmniBeacon acts as an advanced well pump monitoring system that looks, feels, and installs just like a traditional alarm light. You simply attach it to the alarm output of your current device. When triggered, the bright LED beacon flashes and an 85dB siren sounds. But the OmniBeacon goes much further than a standard local alarm. We added cellular telemetry to the circuit, connecting the device directly to local 4G LTE networks and OmniSite’s cloud servers.
Instead of relying on a passerby to notice a flashing light at a remote station, your team receives real-time alert notifications via text message, email, and voice calls. This rapid communication allows you to respond faster, reduce costly downtime, and protect your critical infrastructure from serious damage.
Built for Dependability
Modern pump monitoring systems need to withstand harsh conditions while delivering consistent data. We built the OmniBeacon to excel in tough environments, whether you use it for wastewater management, fresh water treatment, or airfield runway monitoring.
The system offers features designed for total operational peace of mind:
Instant Cellular Notifications: Get immediate alerts directly to your phone or inbox the moment a fault occurs, allowing for swift corrective action.
GuardDog Web Interface: GuardDog comes included with your wireless service purchase. Track data logging, view reports, and manage all your stations from one simple dashboard on your PC, tablet, or smartphone.
Rechargeable Backup Battery: Power loss happens. The built-in, temperature-compensated battery keeps the unit monitoring your station for up to 12 hours after primary power fails.
Power Loss Alerts: Receive an instant notification if the main power drops, so you can address the issue before it becomes a crisis.
Rugged NEMA 4X Enclosure: Mount the unit safely indoors or outdoors. The corrosion-resistant design withstands severe weather, meaning rain, snow, and intense heat will not disrupt your alerts.
Clear Local Alerts: Super bright, long-life LEDs and a loud 85dB audible annunciator ensure on-site personnel know exactly when an alarm triggers.
Dual Input Alarm Channels: Connect multiple triggers easily with options for voltage and dry contact inputs to suit your specific station setup.
Smarter Pump Monitoring Systems
Using smart pump monitoring systems like the OmniBeacon ensures you stay ahead of potential spills, overflows, and costly equipment failure. Environmental stewardship drives our innovation. Early warnings mean you can stop a minor malfunction from turning into a major environmental hazard.
By combining traditional visual and audible alarms with modern cloud connectivity, you get a well pump monitoring system that leaves nothing to chance. Upgrading your setup is simple. A cellular subscription gives you full access to the GuardDog interface, making remote management effortless. Tens of thousands of OmniSite monitors currently protect stations across the country, helping operators maintain safe, fresh drinking water and clean environments.
Equip your stations with the tools you need to act quickly and confidently. Reach out to your local OmniSite representative today to secure your unit, or ask about trying a device on your most critical station. Let us help you keep your operations running smoothly and our planet's water safe.
