The Complete Monitoring Solution
A smarter Crystal Ball—inside and out.
You may notice your Crystal Ball arriving in a new yellow-block color scheme, designed to align with the upcoming launch of our WINGs™ product line. While the look is new, the real story is what’s happening inside.

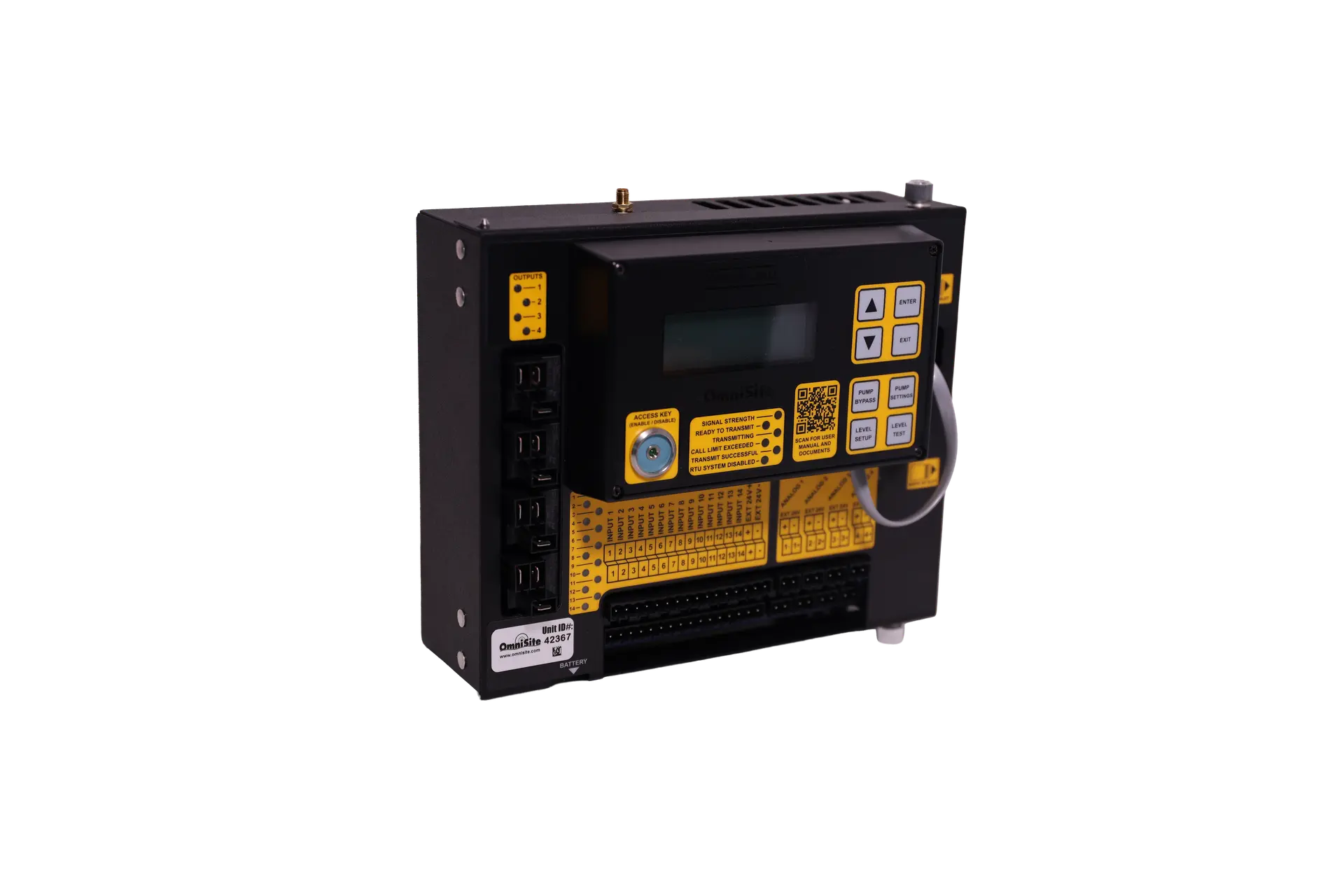

The Crystal Ball has been completely redesigned with a new circuit board that delivers OTA update capability, more memory, and faster processing speeds. These upgrades improve performance, reliability, and ease of use—both now and well into the future.
What’s new:
- 24 VDC external sensor courtesy voltage (upgraded from 12 VDC) to better support today’s 4–20 mA sensors
- Increased LED brightness for easy visibility in outdoor and high-sunlight environments
- Simplified internal design with fewer circuit boards to maintain durability while controlling costs
- Numerous circuit improvements that make the unit tougher, more reliable, and easier to service
And this is just the beginning…
In the near future, the Crystal Ball will include a much larger internal rechargeable backup battery, dramatically increasing runtime during power outages
The Crystal Ball doubles as a cellular pump station monitor and a backup pump controller. Receive real time alerts by email, phone, text message, or any combination of the three.
Need literature?
Are you looking for data sheets, brochures, engineering specifications? Look no further.
Access our Documents page
Click the link above to download crystal ball related literature!
Features
Customizable Inputs & Outputs
14 digital inputs and 4 analog inputs, accepts 12 VAC- 120 VAC, allowing you to wire up floats and sensors directly to your monitoring device.
Built-In Pump Control
4 20A @ 120 VAC resistive relay outputs allow for backup pump control.
Backup Battery
On-board 12 V power supply means your device will continue to monitor and send alerts even if the main power is down.
Immediate Alarm Reporting
Report machinery operational data every 15 minutes using the Elite Data package.
Fraction of the Cost
SCADA replacement at a fraction of the cost and complexity.
3 in 1
Advanced internet-based monitor, controller, and analyzer.
Applications
Wastewater
Do you know what's happening in your wastewater collection system when you are sleeping? OmniSite does. Always know the health of your pumps, trends in runtime, cycles, excess or no runtime, amps, I&I, flow, GPMs, and failures.
Water
We know how important efficient solutions are in the water industry. Receive real time alerts when equipment malfunctions, allowing you to avoid costly downtimes and ensure smooth operation.

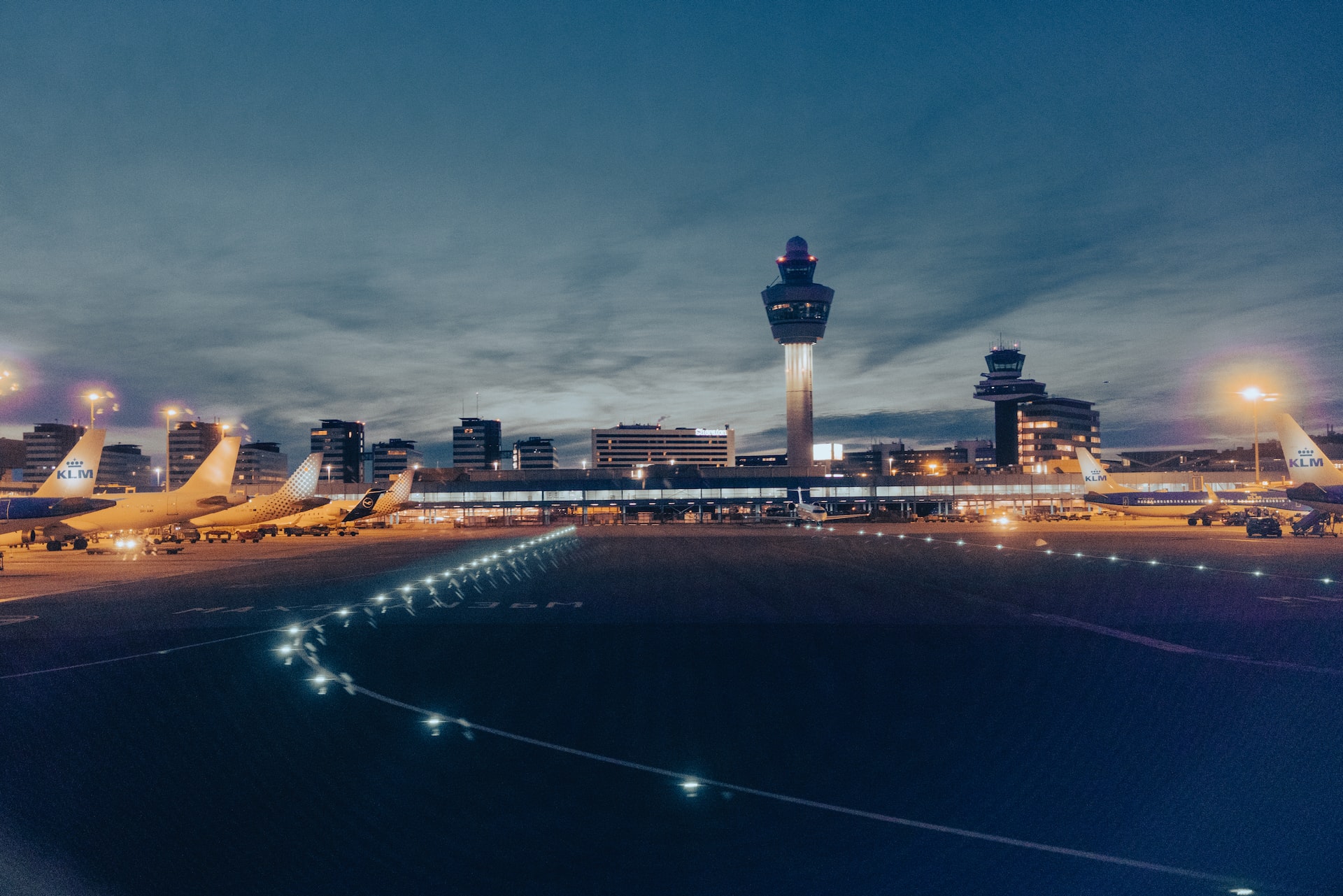

Airfield Lighting
Imagine the impact of closely monitoring the runway lights in the airfield industry. This often neglected area plays a crucial role in ensuring safe landings and takeoffs. Let us enlighten you on the significance of this vital component.
Technical Specs
| Power | 12 VDC or 120 VAC |
| Communications | 4G LTE CAT-1/CAT-M1 |
| Access Key | Smart security key to identify personnel on site |
| Terminal Blocks | Removable style accepts #14-18 AWG solid or stranded wire |
| Operating Temp. | -20/150 Deg F |
| Operating Humidity | 0-90% RH Non-condensing |
| Dimensions | 8.9”H x 9.4”W x 3.8”D |
| Memory Stick | 32Mb- 1 Gb user selectable |
| LCD Display | 4 X 20 rugged operation |
| Keypad | (8) universal navigation buttons |
| Analog Inputs | (4) 4-20mA, isolated, 10 bit resolution |
| Relay Outputs | (4) 20A @ 120VAC resistive |
| Digital Inputs | (14) Universal Inputs accept 12 VAC/VDC – 120 VAC/VDC |
Frequently asked questions
Here are some common questions about Crystal Ball.
The Crystal Ball is a 3-in-1 cellular pump station monitor, controller, and analyzer. It provides real-time alerts and backup pump control in one compact device.
It reports operational data every 15 minutes and instantly sends alerts via email, text, or call. Perfect for remote pump and sensor monitoring in water and wastewater systems.
The Crystal Ball features 14 digital and 4 analog inputs plus 4 relay outputs, supporting 12–120 VAC/VDC ideal for connecting floats, sensors, and pumps directly.
Yes, it includes a built-in 12V backup battery that keeps the monitoring and alert system running even when main power fails.
It's ideal for water utilities, wastewater treatment plants, and airfields needing a cost-effective SCADA alternative with cellular telemetry and web-based access.
OmniSite Crystal Ball: The Complete Cellular Pump Station Monitor
We have one planet where we all live, and protecting our environment is a shared responsibility. Across the USA, tens of thousands of OmniSite monitors are working hard. By providing early warnings of malfunctioning equipment, we help municipalities take immediate action to prevent environmental disasters. The OmniSite Crystal Ball is designed to give you that critical head start. As an advanced cellular pump station monitor, it offers complete remote visibility into your municipal wastewater and water pumping stations so you always know exactly what is happening.
Advanced Lift Station Monitoring and Control
Managing municipal water systems requires reliable data and the ability to take immediate action. The Crystal Ball delivers exactly that by functioning as a 3-in-1 internet-based monitor, analyzer, and lift station controller. When you need a dependable lift station controller, this versatile device steps up to provide real-time alerts via email, phone, text message, or any combination of the three. You get comprehensive lift station monitoring right at your fingertips. By tracking amps, flow, and gallons per minute, you can catch critical issues before they turn into costly emergencies.
A Cost-Effective SCADA Alternative
Upgrading your infrastructure does not have to drain your municipal budget. The Crystal Ball offers a powerful alternative to complex SCADA systems at a fraction of the cost and complexity. It acts as a highly effective wireless pump controller, giving you the ability to manage backup pump operations seamlessly from anywhere. When equipment malfunctions, your cellular pump station monitor sends immediate notifications. This capability drastically reduces downtime, saves money on emergency field repairs, and prevents hazardous overflows that threaten the local environment. It is simply the smartest way to upgrade your facility.
Powerful Features Built for Water and Wastewater
Whether you oversee a sprawling municipal wastewater collection system or a fresh water distribution network, this reliable lift station controller is built to handle the job. The rugged unit features over-the-air update capability, increased outdoor LED visibility, and tough internal circuitry.
Key features of your new wireless pump controller include:
Customizable Inputs & Outputs: Wire your floats and sensors directly to the monitoring device with 14 digital inputs and 4 analog inputs that accept 12 VAC to 120 VAC/VDC.
Built-In Pump Control: Rely on four 20A at 120 VAC resistive relay outputs for dependable backup pump control.
Backup Battery Power: An on-board 12V power supply ensures your cellular pump station monitor continues to track data and send critical alerts even during a main power failure.
Reliable 4G LTE Communications: Stay securely connected with fast cellular data transmission on the best available networks.
Actionable Data Tracking: Report vital machinery operational data every 15 minutes to track trends in runtime, cycles, and potential failures.
Protect Our Waterways with Proactive Insights
Do you know what is happening in your collection system while you are asleep? Effective lift station monitoring means you never have to guess. By spotting excess runtime or pump failures early, you protect both your vital equipment and our precious earth.
Ready to secure your municipal water infrastructure with a trusted wireless pump controller and complete lift station monitoring solution? Upgrade your system and gain total peace of mind today. Contact our team to request a quote for the OmniSite Crystal Ball.
