XR50
Talk about an Upgrade
Your XR50 may arrive at your door with a bold new yellow-block color scheme, aligning with the upcoming launch of our new WINGs™ product line. But this update goes far beyond a fresh look.
The newly redesigned XR50 features an all-new circuit board with over-the-air (OTA) update capability, increased memory, and faster processing power—making system updates and long-term performance better than ever. We’ve also made several hardware improvements to simplify installation, service, and reliability in the field.
Key upgrades include:
- External sensor courtesy voltage increased from 12 VDC to 24 VDC, ideal for most 4–20 mA devices on the market
- Brighter LEDs for improved visibility, even in direct sunlight
- Fewer internal circuit boards, helping keep pricing competitive while improving durability
- Enhanced circuit design for a more rugged, field-friendly product
And coming soon… drum roll please
This redesigned XR50 will feature a significantly larger internal rechargeable backup battery, providing greatly extended runtime during AC power loss conditions.
Check the Verizon Coverage in your area
Choose the XR50 because...

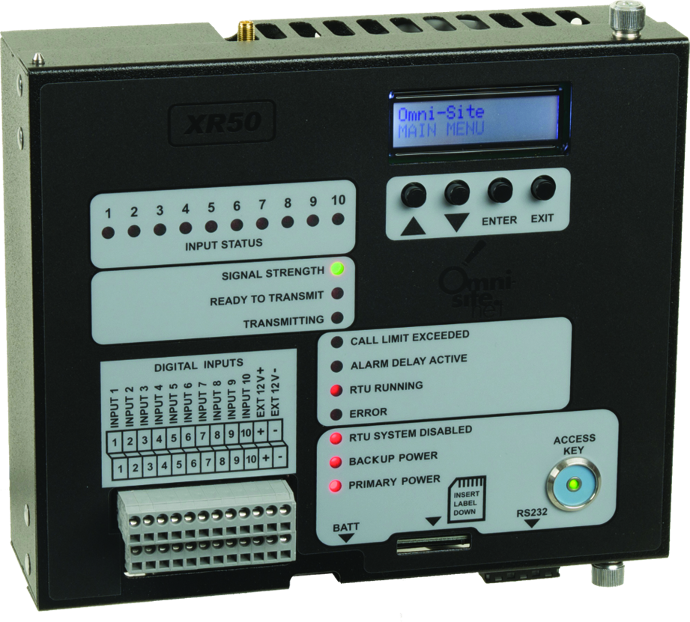

Experience unparalleled monitoring efficiency with the OmniSite XR50 Alarm Monitor - your advanced solution for remote equipment and machinery supervision. Leveraging the expansive coverage of local cellular networks, the XR50 offers a reliable and scalable alternative to traditional monitoring methods, eliminating the need for dedicated telephone lines or proprietary radio systems.
Our system significantly reduces the financial investment compared to a SCADA system, while still providing comprehensive monitoring capabilities. The OmniSite XR50 facilitates seamless equipment surveillance through an internet-based platform, accessible via any standard web browser. This means there's no additional software purchase required.
In the event of any irregularities or abnormal conditions, the XR50 ensures you're the first to know. It promptly dispatches notifications through a variety of channels including e-mail, text message, or voice call, keeping you informed and in control, no matter where you are. Embrace the future of efficient and cost-effective equipment monitoring with the OmniSite XR50 Alarm Monitor.
Download Important Documents
Click the links below to download the latest versions of literature.
Applications
Wastewater
Do you know what's happening in your wastewater collection system when you are sleeping? OmniSite does. Always know the health of your pumps, trends in runtime, cycles, excess or no runtime, amps, I&I, flow, GPMs, and failures.
Water
We know how important efficient solutions are in the water industry. Receive real time alerts when equipment malfunctions, allowing you to avoid costly downtimes and ensure smooth operation.
Airfield Lighting
Technical Specs
| Power | 12 VDC or 120 VAC |
| Communications | 4G LTE CAT-1/CAT-M1 |
| Inputs | (10) Universal Inputs accept 12 VAC/VDC – 120 VAC/VDC |
| Access Key | Smart security key to identify personnel on site |
| Terminal Blocks | Removable style accepts #14-18 AWG solid or stranded wire |
| Operating Temp. | -20/150 Deg F |
| Operating Humidity | 0-90% RH Non-condensing |
| Dimensions | 8.9”H x 9.4”W x 3.5”D |
| Memory Stick | 32Mb- 1 Gb user selectable |
| LCD Display | Backlit 2 x 16 |
| Keypad | (4) universal navigation buttons |
Frequently asked questions
Here are some common questions about XR50.
The XR50 is an advanced alarm monitor designed for remote equipment and machinery supervision. It uses local cellular networks for efficient and reliable monitoring without dedicated telephone lines.
Leveraging 4G LTE CAT-1/CAT-M1 communications, the XR50 sends real-time notifications via email, text, or voice calls. This ensures you’re instantly alerted to any irregularities.
The XR50 offers a cost-effective alternative to SCADA systems with comprehensive monitoring capabilities. Enjoy scalable, internet-based equipment surveillance without extra software.
Ideal for wastewater, water management, and airfield lighting, the XR50 monitors pump health, equipment performance, and system trends in various industrial settings.
With 10 universal inputs, a backlit LCD, and a smart access key, the XR50 combines rugged design with advanced features. Its 12 VDC/120 VAC power options and removable terminal blocks ensure versatile deployment.
OmniSite XR50: Advanced Remote Equipment Monitoring
We share one planet, and protecting our Earth’s resources is a responsibility we take seriously. Across the United States, tens of thousands of OmniSite monitors stand guard over municipal sewage and water pumping stations. Our primary goal is straightforward: provide the early warnings you need to ensure drinking water stays fresh and local waterways remain clean. Equipment malfunctions happen, but early detection allows you to take swift action to protect your community and the environment. The OmniSite XR50 provides exactly that level of oversight.
Reliable Connectivity and Real-Time Alerts
The XR50 delivers consistent remote monitoring for your pumps, machinery, and critical facility equipment. By operating on dependable local cellular networks, this robust unit eliminates the constant hassle and expense of dedicated telephone lines or proprietary radio setups. When you need a highly responsive lift station alarm, the XR50 delivers. The system sends real-time alerts straight to your team via email, text message, and voice call. You gain peace of mind knowing you will always be the very first to hear about abnormal conditions at your site.
A Cost-Effective Approach to System Management
Municipal water and wastewater operators frequently face tight budgets and high expectations. We specifically designed the XR50 to serve as a highly capable, cost-effective alternative to a full SCADA system. You achieve comprehensive equipment oversight without the massive financial investment typically required for extensive monitoring networks. Furthermore, our system operates entirely through a secure, internet-based platform. You can access your critical data from any standard web browser. There is absolutely no extra software to purchase, install, or maintain.
Rugged Design Meets Modern Technology
We constantly refine our hardware to better serve the people working out in the elements. The newly redesigned XR50 features an advanced circuit board equipped with over-the-air (OTA) update capabilities, faster processing power, and significantly increased memory. These updates ensure your equipment stays current and performs flawlessly over the long haul.
Key hardware improvements include:
Simplified Field Service: A streamlined design with fewer internal circuit boards makes the unit much more rugged and far easier to install or service.
Upgraded Sensor Power: We increased the external sensor courtesy voltage to 24 VDC. This upgrade makes the unit highly compatible with most 4–20 mA devices, making it an excellent choice for precise wireless tank monitoring.
Enhanced Visibility: We added much brighter LEDs so your technicians can read the display clearly, even under glaring direct sunlight.
Extended Backup Power: A significantly larger internal rechargeable backup battery keeps your alarm system running much longer during unexpected AC power loss conditions.
Empowering Municipal Water and Wastewater Operators
Efficient, reliable solutions matter deeply in the municipal sector. Whether you manage community drinking water reserves or oversee complex wastewater collection networks, tracking pump health and identifying failures early is vital. Catching a minor issue before it becomes a major overflow helps you avoid costly downtime and severe environmental damage. The XR50 puts complete control and situational awareness directly into your hands.
Secure your municipal infrastructure with monitoring equipment built for true reliability and tough, real-world conditions. Contact OmniSite today to learn more about the XR50 and discover how we can partner with you to safeguard your community through water tank monitoring, lift station alarms, and more.
